Photo Stencil Type 1 – 25 × 25 mm (1″ × 1″), Made to Your Artwork

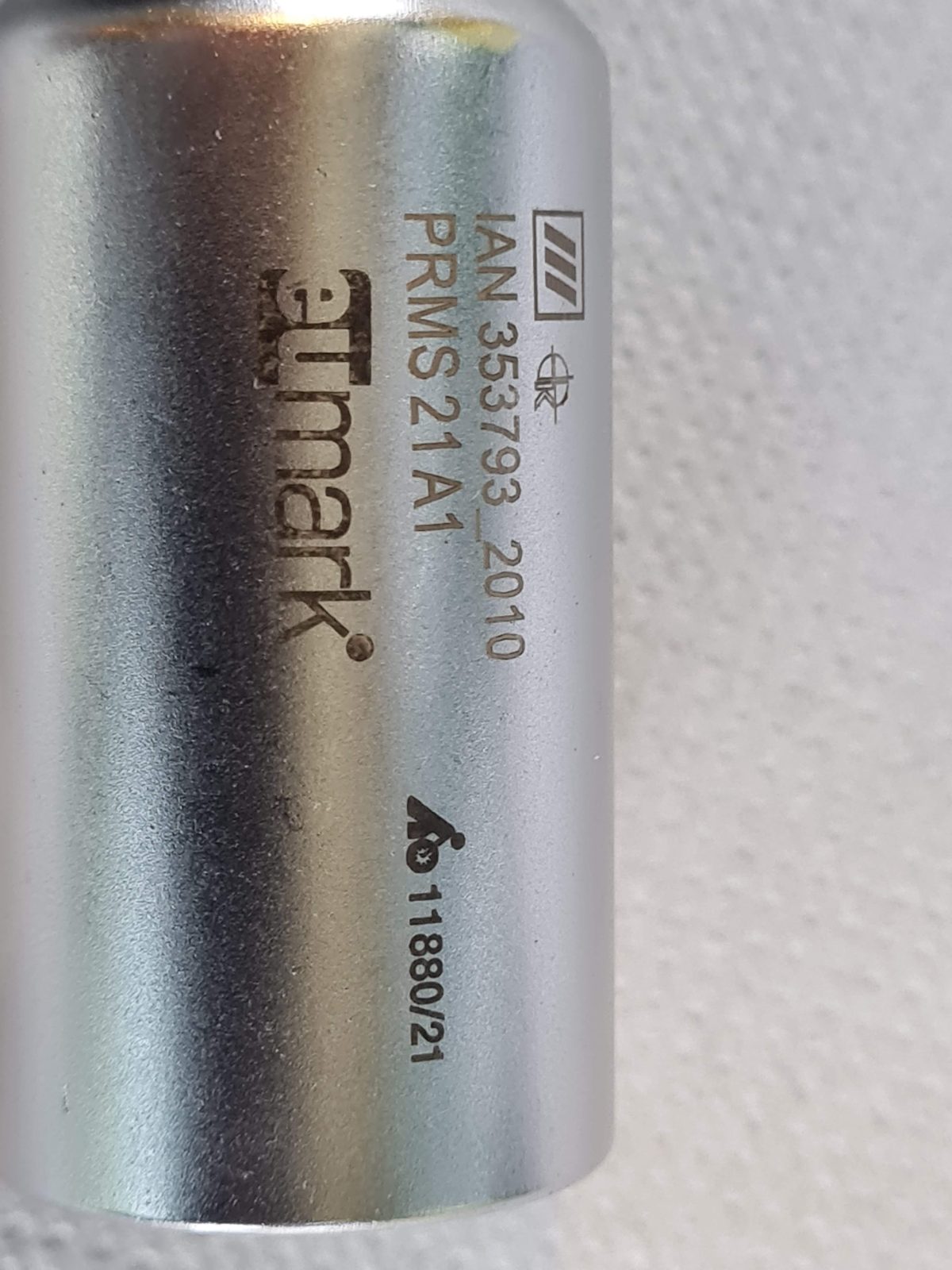

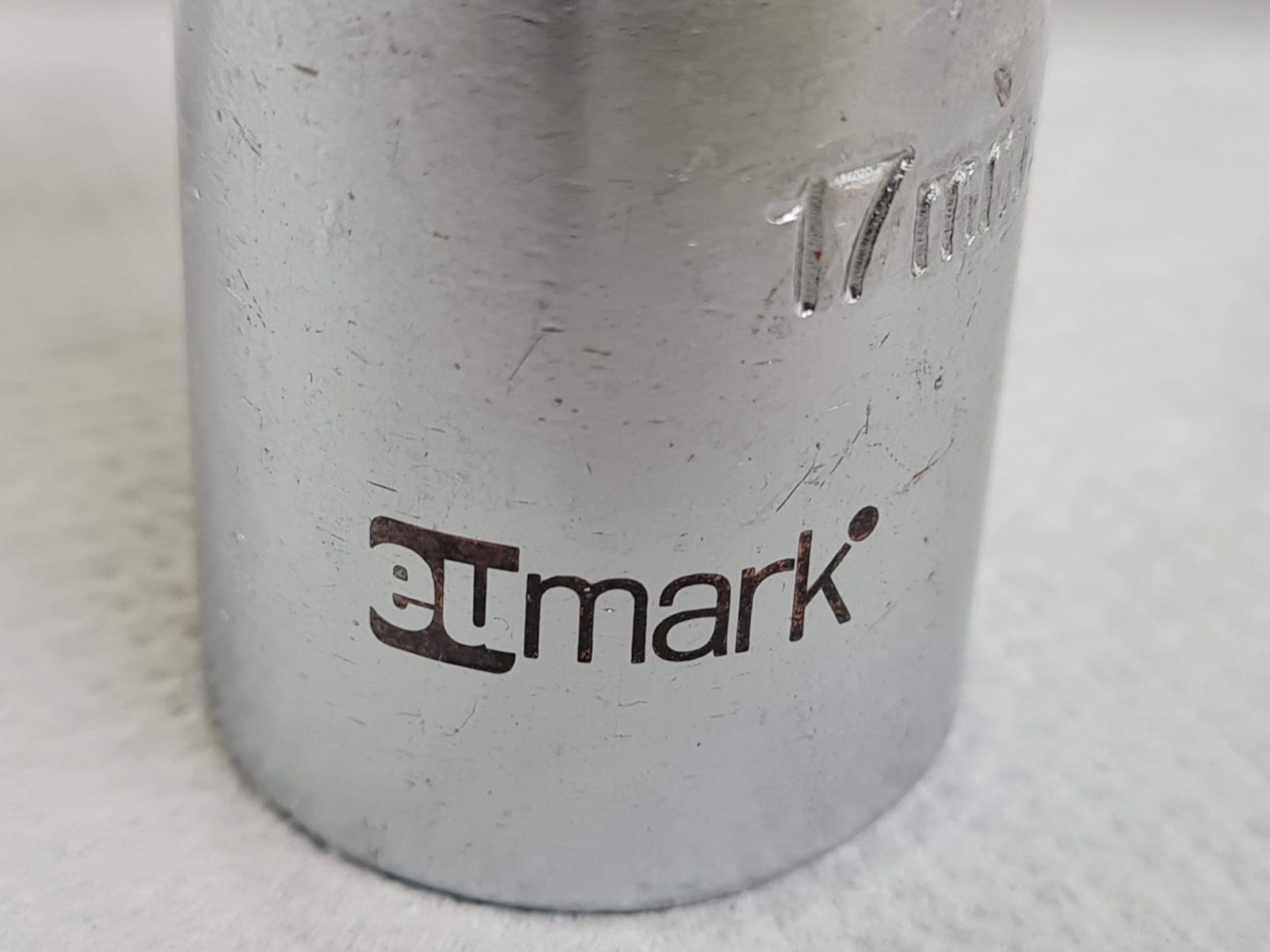

The square format of Type 1 suits a compact logo, a maker’s mark, or identification on parts where there is little flat surface to work with — small fittings, instruments, tooling and hardware.

Made to order

Produced from your artwork, with no minimum order and no tooling charge. Send the file at the highest resolution you have; vector gives the best result.

Fine detail at small size

A small marking area puts more demand on line weight than a large one. Thin strokes and small lettering reproduce well through the photographic process, but the finer the artwork, the more the stencil benefits from careful handling and black oxide marking rather than deep etch.

Service life

Several thousand marks with careful handling and black oxide marking, considerably fewer under deep etch. Figures are indicative and depend on the design, electrolyte and current setting.

25 × 25 mm (1″ × 1″) marking area

Made to your supplied artwork

Reusable

Compatible with M21, M22 and M23 electrolytes

Fits all EUmark marking heads

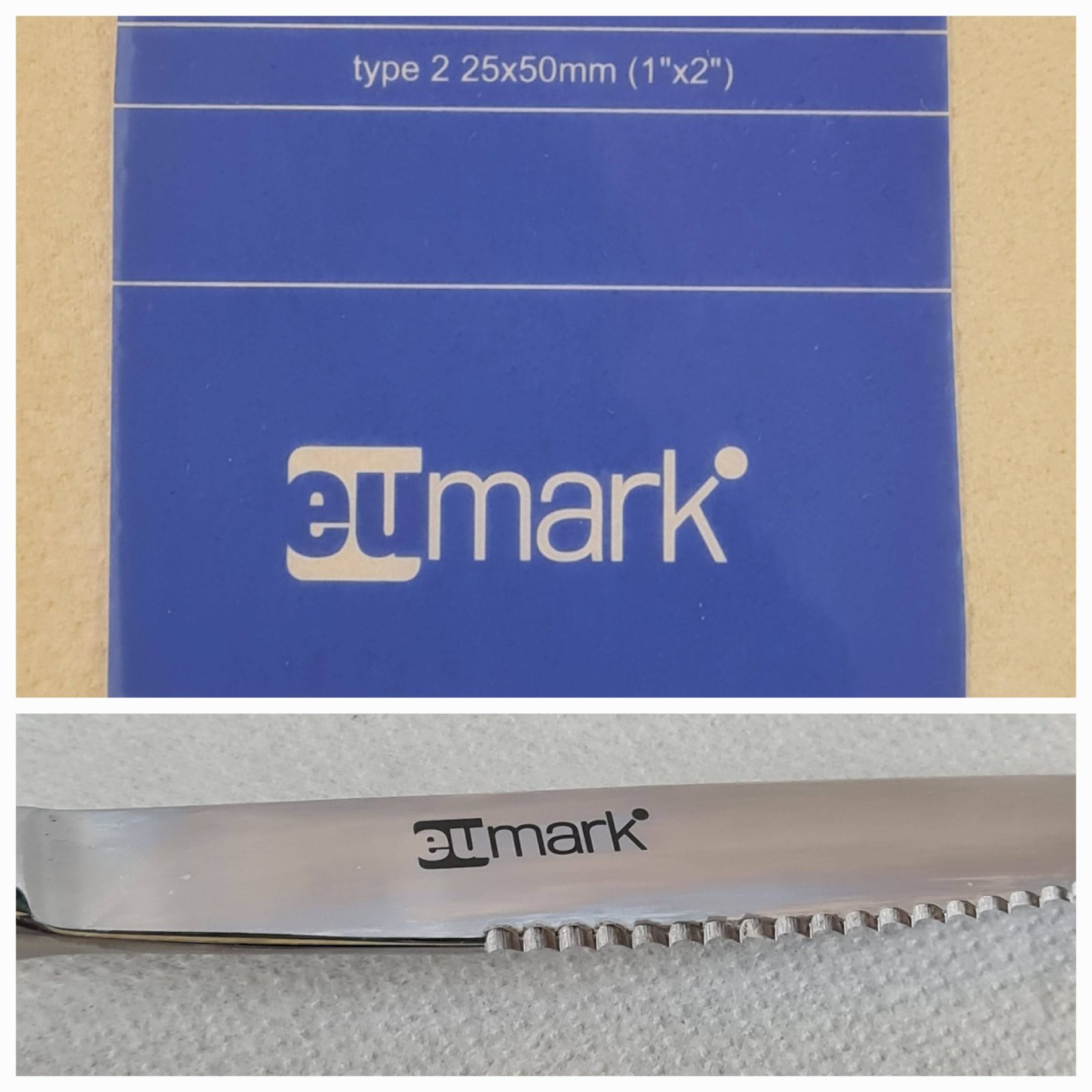

Also available as Type 2 at 25 × 50 mm and Type 3 at 50 × 50 mm.
